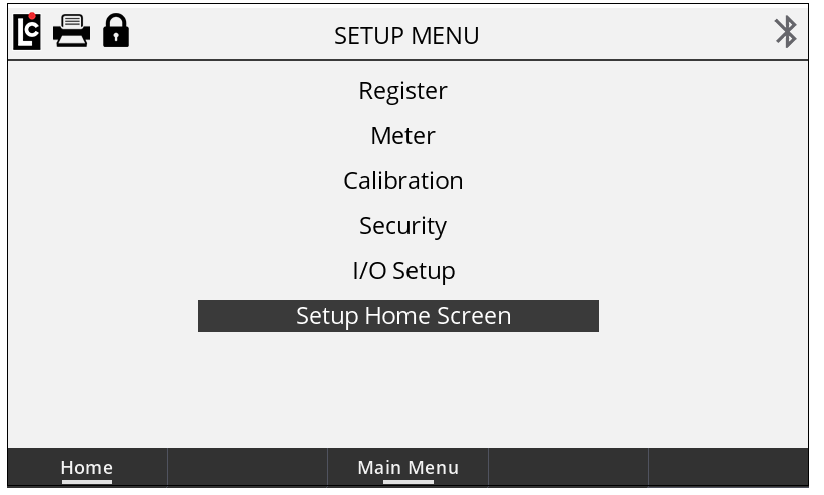

The Custom Home Screen menu permits the user to setup and configure various parameters that appear on the home screen. In these screens, the user can select from a series of default profiles that are common to an industry, or create a custom arrangement from the available drop-down selection options for each line.
Customize Home Screen can be used to configure up to 12 parameters inside one or two data columns displayed on the idle and active delivery screens.
The following preconfigured display profiles are available on the Register:
Preconfigured LPG Profiles are basic screen profiles that are tailored to propane industry standards and available options.

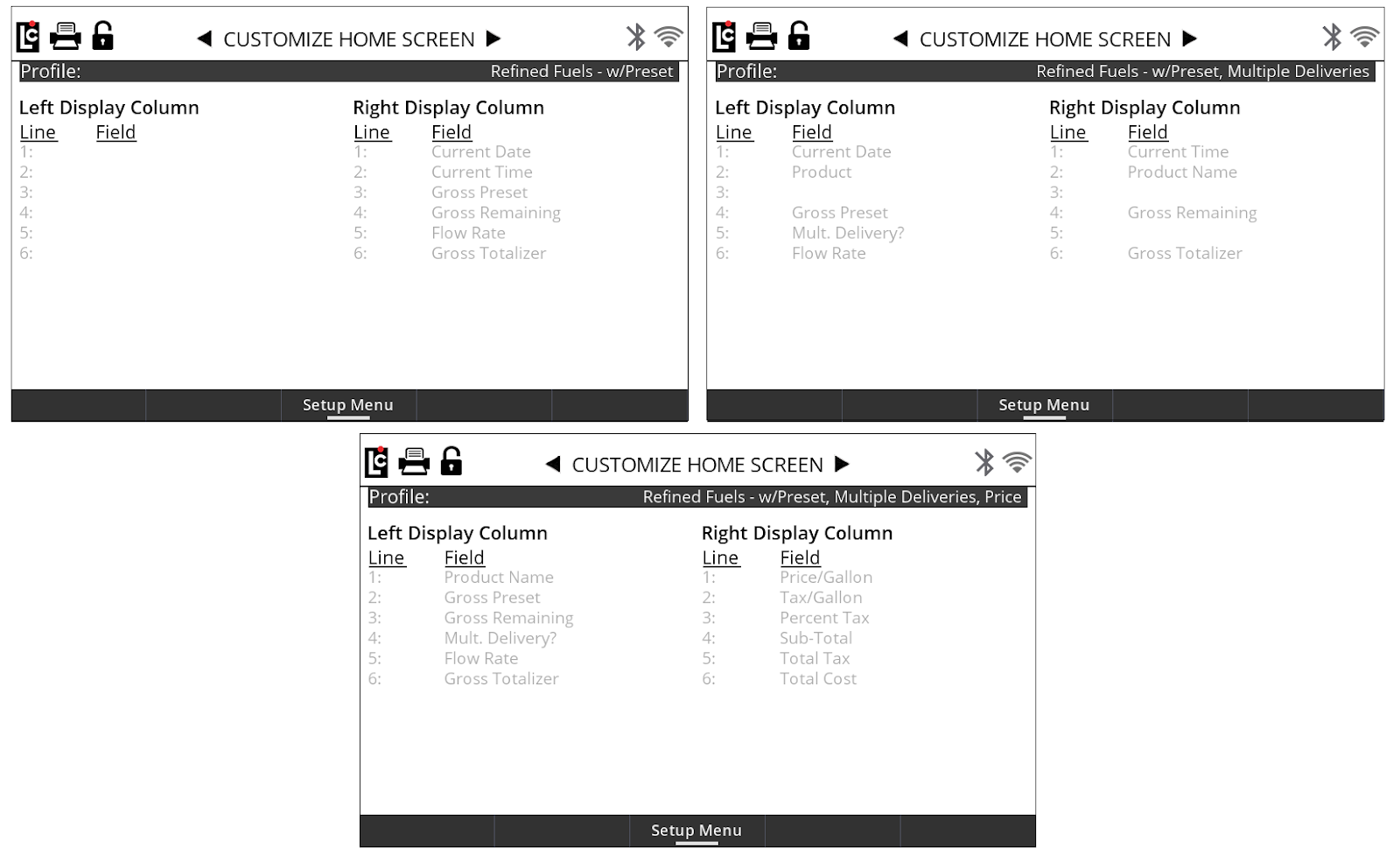

Preconfigured Refined Profiles are basic screen profiles that are tailored to aviation refined fuel industry standards and available options.

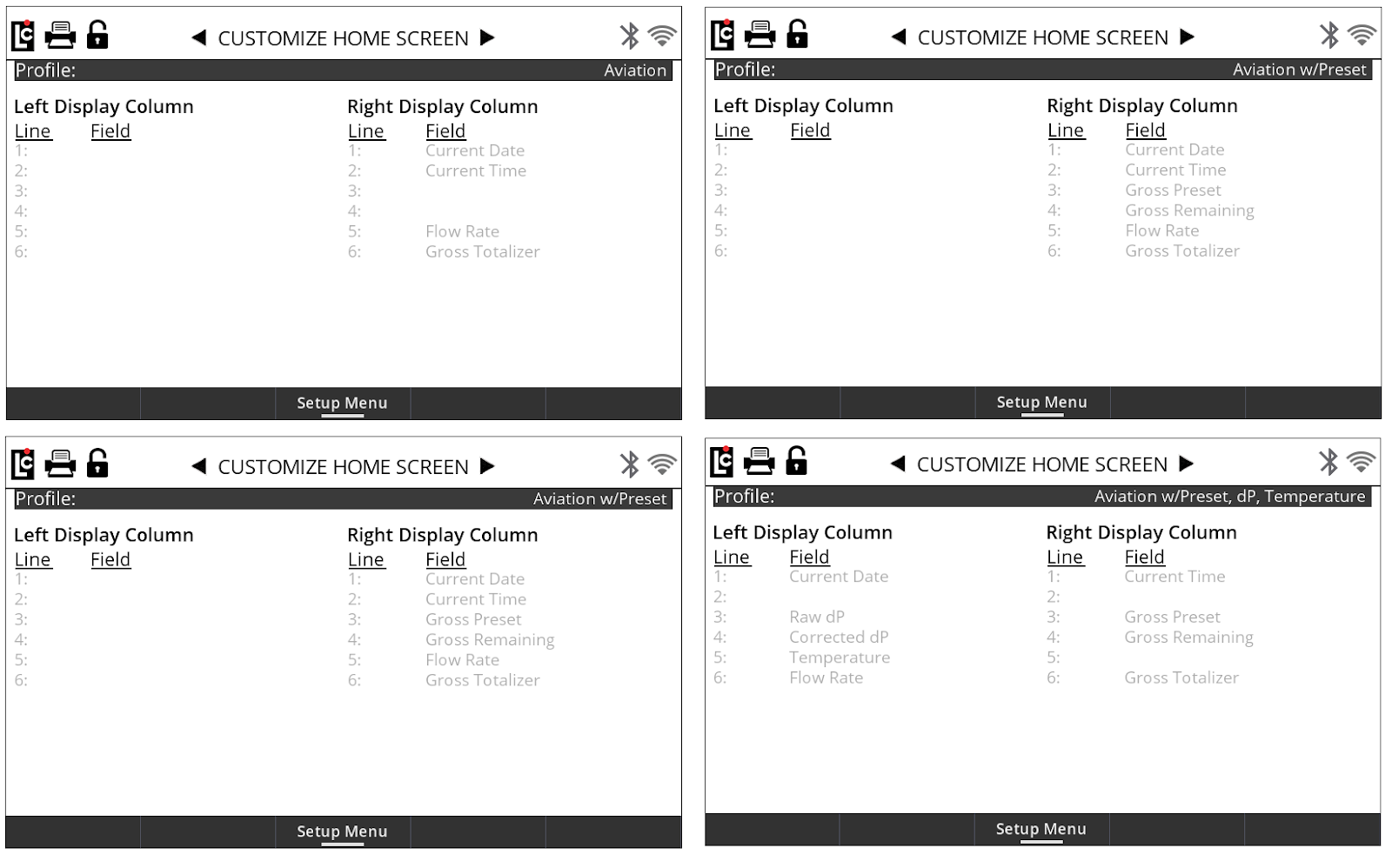

Preconfigured Aviation Profiles are basic screen profiles that are tailored to aviation industry standards and available options.

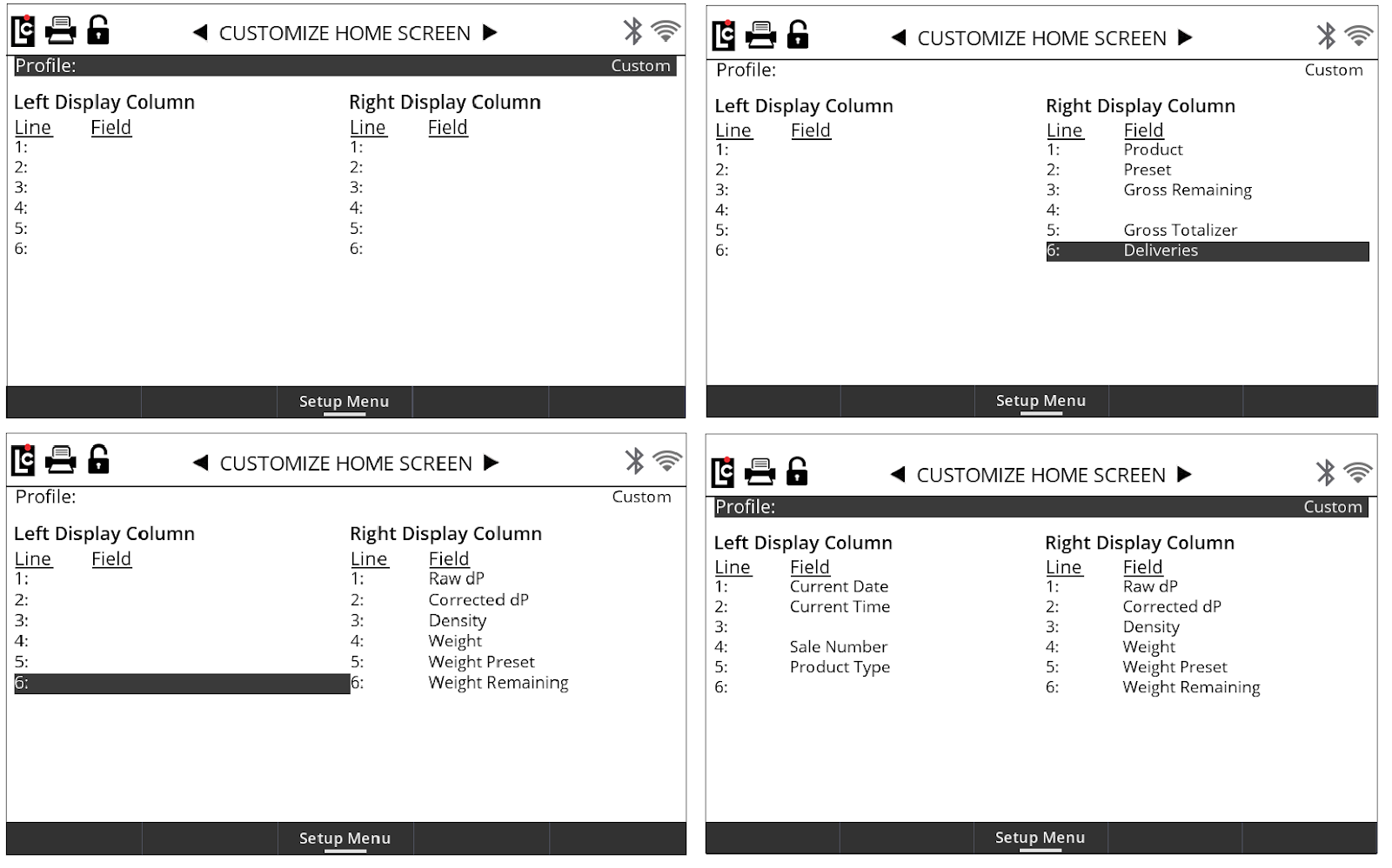

Custom Home Screen design can be done by selecting the Custom profile options. Use the navigation keys to scroll the cursor to the column (Left or Right) and field (1-6) then press OK to view the available list of fields that can be displayed. Once a selection is made, pressing the OK button again will confirm the selection. That field will now appear in the selected column on the home screens.
