Pass Through Printing

<< Click to Display Table of Contents >>

Navigation:  LCR.iQ Product Manual > Installation >

Pass Through Printing

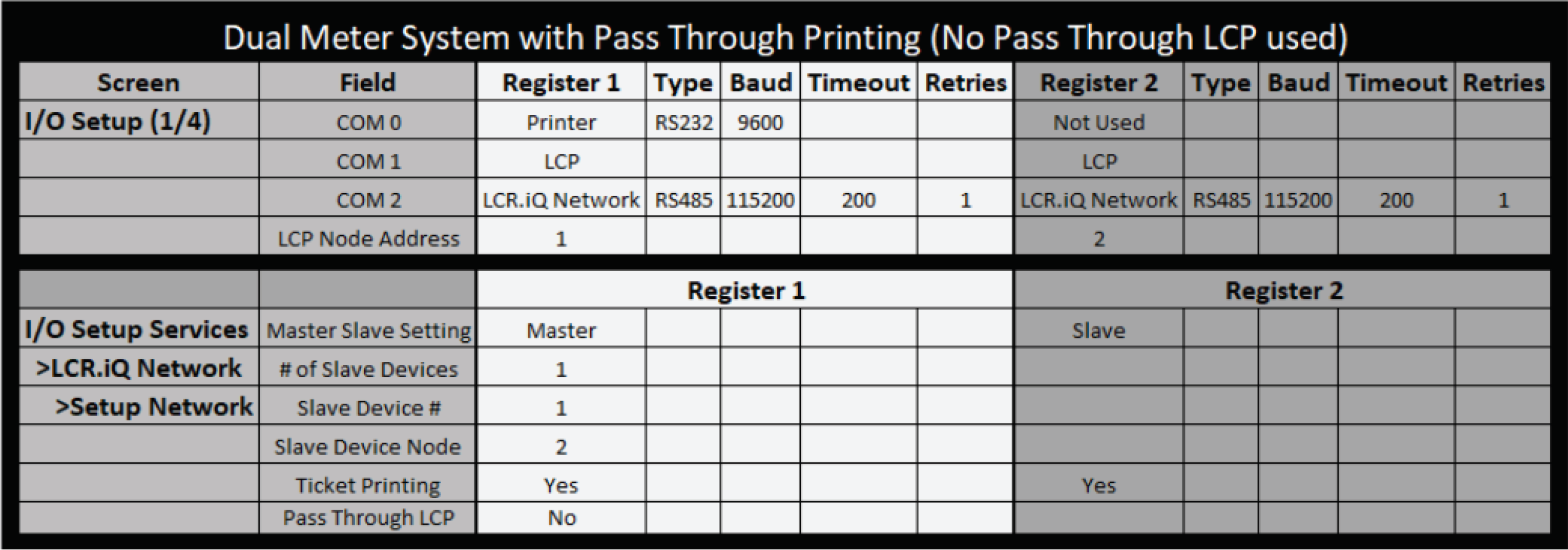

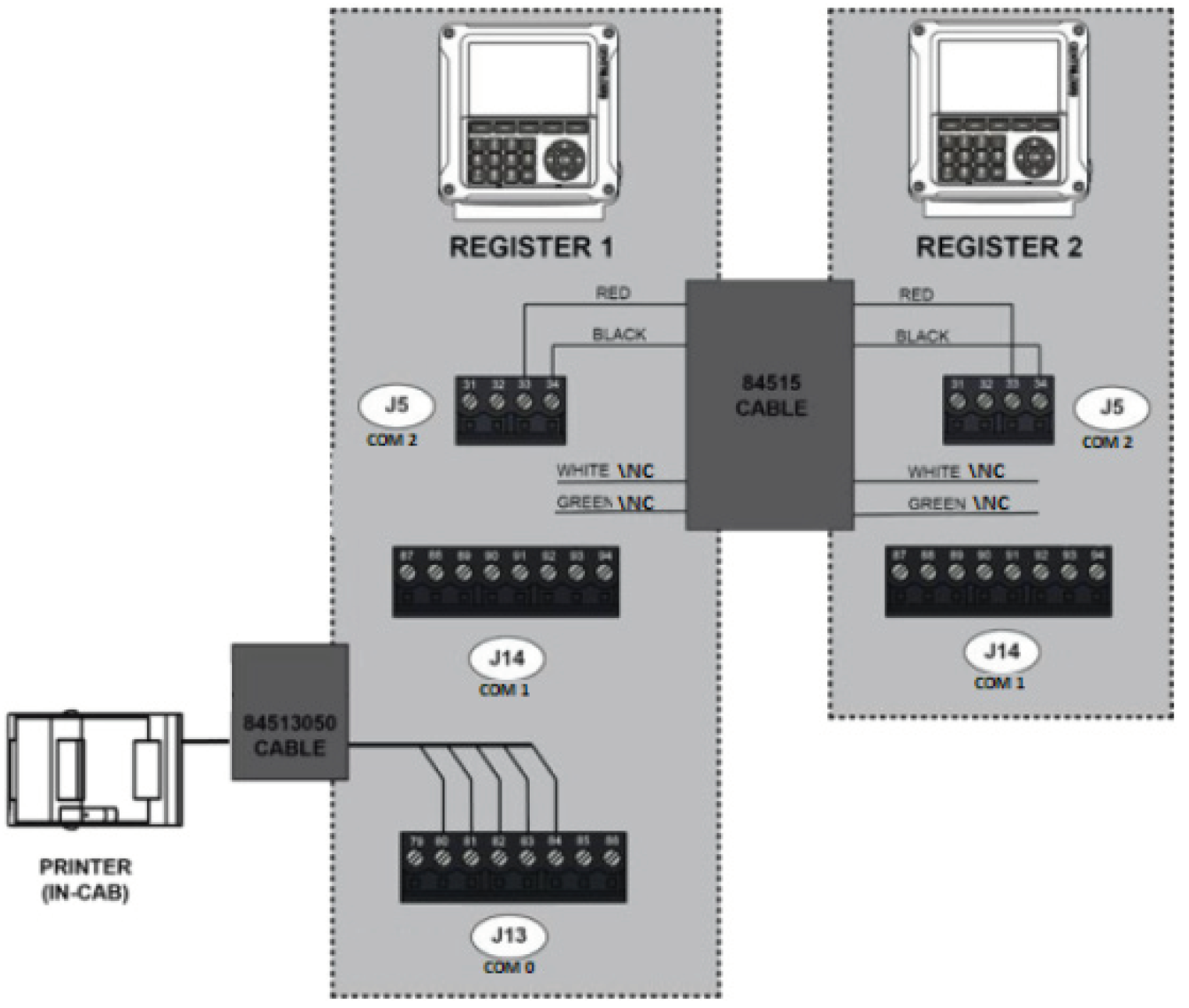

Dual Meter System with Pass Through Printing (No Pass Through LCP used)

pass_through_printing_1





pass_through_printing_2



Three (or more Dev.) Meter System with Pass Through Printing (No Pass Through LCP used)

pass_through_printing_3





pass_through_printing_4

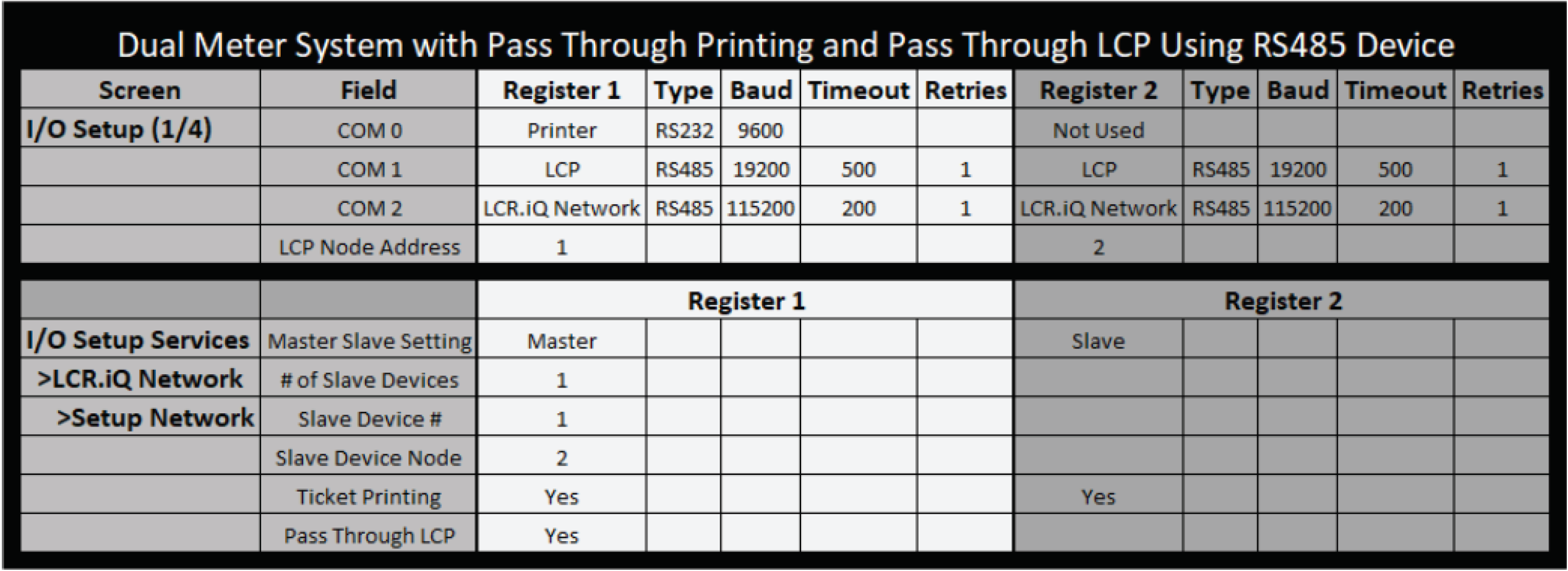

Dual Meter System with Pass Through Printing and Pass Through LCP Using RS485 Device

pass_through_printing_5





pass_through_printing_6

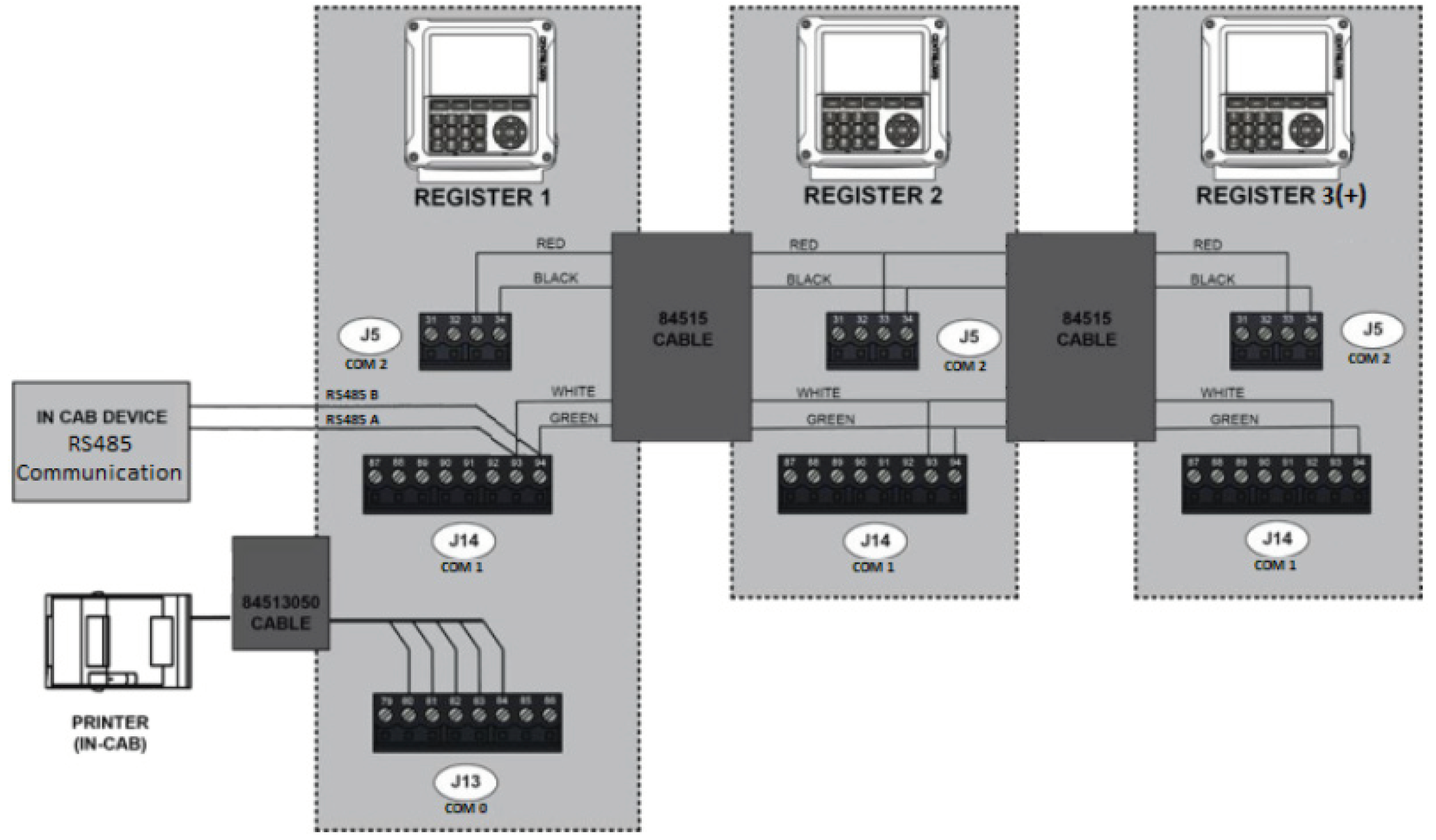

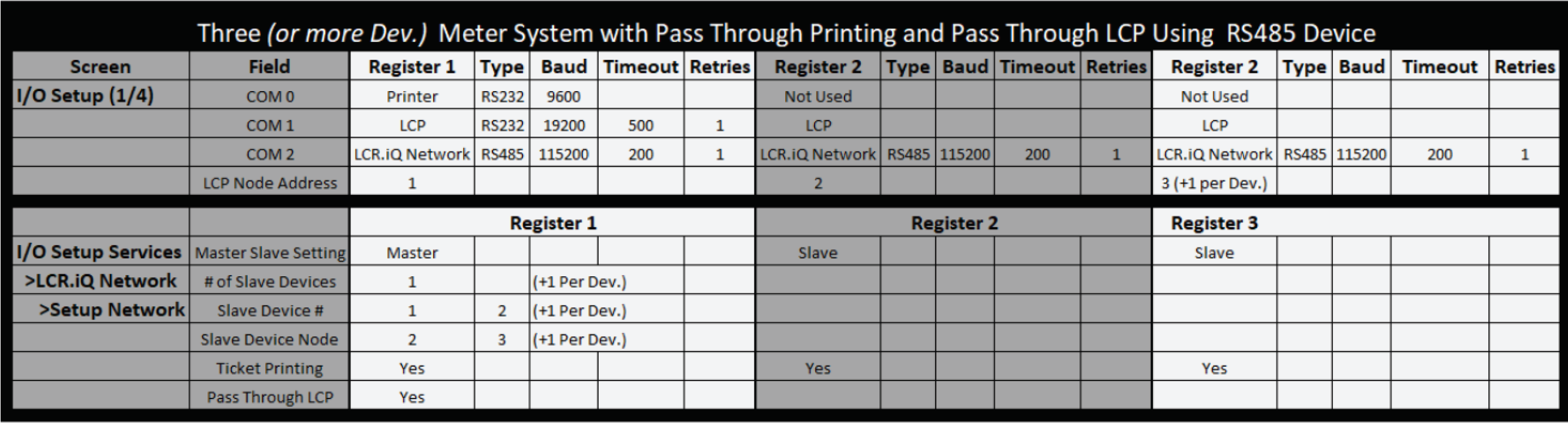

Three (or more Dev.) Meter System with Pass Through Printing and Pass Through LCP Using RS485 Device

pass_through_printing_7





pass_through_printing_8



Dual Meter System with Pass Through Printing and Pass Through LCP Using RS232 Device

pass_through_printing_9





pass_through_printing_10





Three (or more Dev.) Meter System with Pass Through Printing and Pass Through LCP Using RS232 Device

pass_through_printing_11

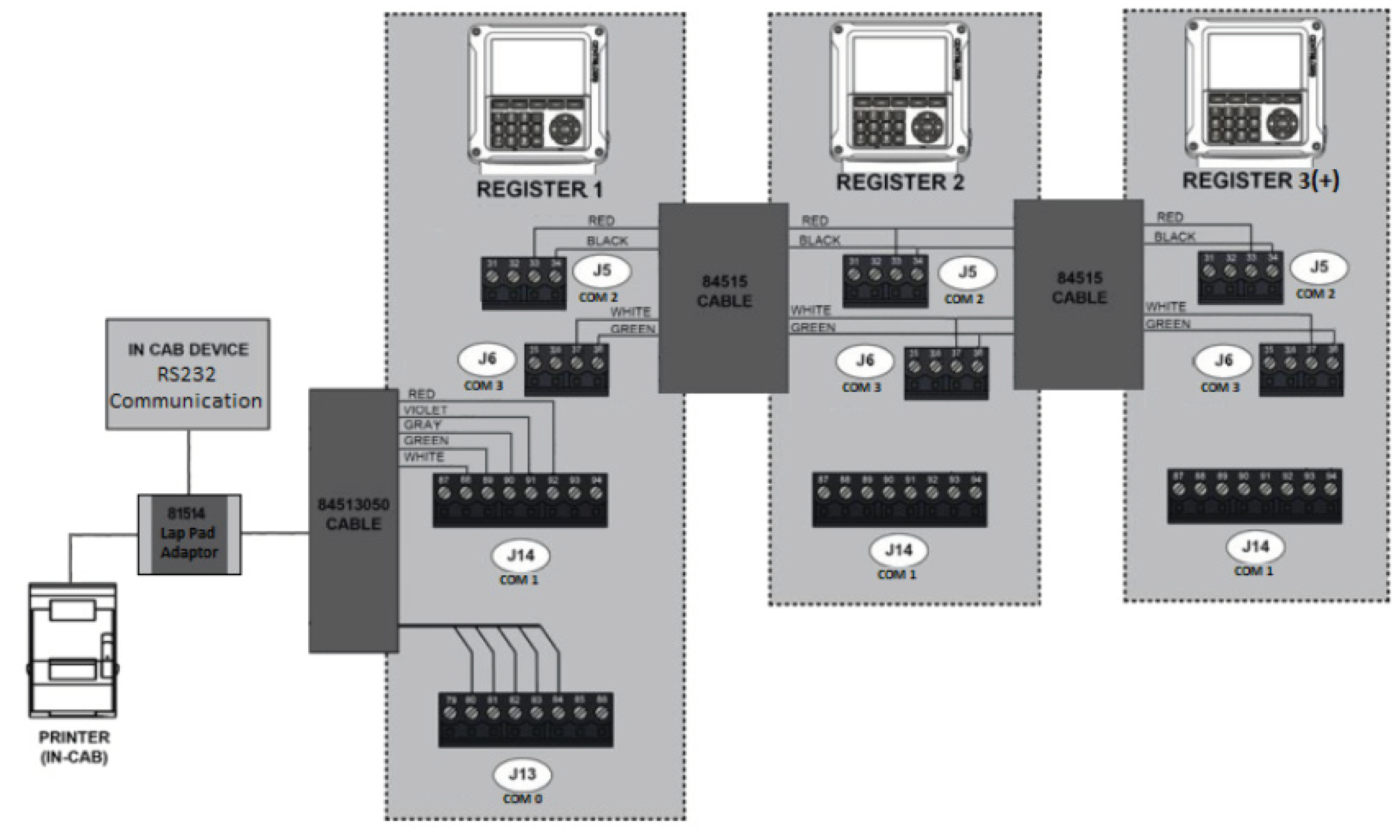

pass_through_printing_123
