Setting the Standard Adjuster

Mechanical Instructions Only

These instructions apply to meters equipped with mechanical output accessories only. If your meter is equipped with an electrical output (i.e., electronic pulser), refer to the manual for the electrical component your Owner Information Packet.



Refer to the figure at the bottom of this section and follow this procedure to set the standard adjuster:



1.Remove the dust cover. See the Removing the Dust Cover procedure in Servicing the Drive Components.

2.Check meter registration by delivering product to a reliable, accurate prover. Perform multiple delivery tests to verify the meter repeatability.

3.Record the setting that is indicated on the adjuster.

4.Note the difference between the volume of the prover and the volume indicated on the meter counter.

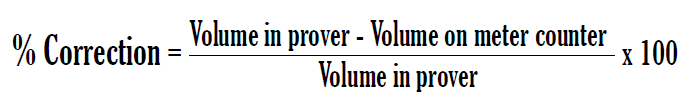

Calculate the necessary % correction using this formula:

m_ma_series_8


5.Loosen the adjuster clamp screw.

6.When the prover volume is less than the meter counter volume, add the percentage to the original adjuster setting by turning the thimble towards the arrow marked LARGER (larger volume). Correct the original setting by approaching the number desired from the next larger number. For example, if the desired adjuster setting is 2.4, turn the adjuster thimble to the left to number 5, then to the right to obtain the 2.4 setting. Adjuster is currently set at 2.3 in the figure below.







ms_11









m_ma_series_9



7.When the prover volume is more than the meter counter volume, subtract the percentage from the original adjuster setting by turning the thimble in the direction of the arrow marked smaller volume percent.

8.Retighten the adjuster clamp screw. Run product through the meter to allow the adjuster to take a set. Then make several prover runs to check for accuracy.
