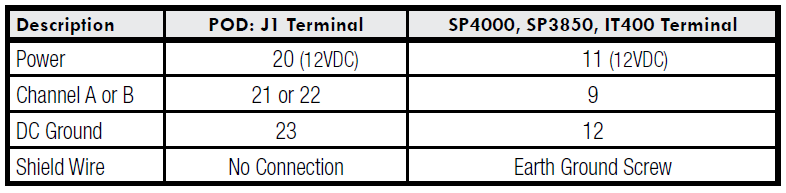

Single Channel Applications – SP4000, SP3850, IT400

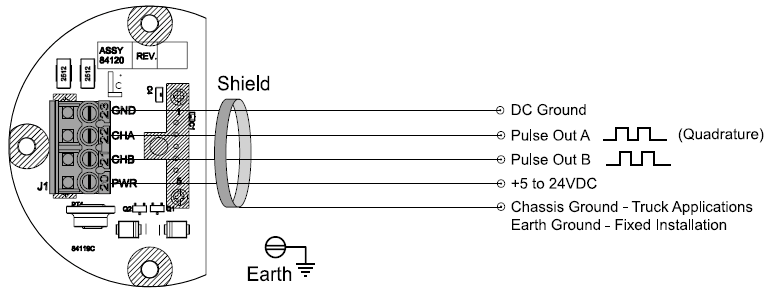

Follow these steps when wiring the POD:
1.Use metallic conduit with individual wires or use 3 conductor, 22 AWG, shielded cable. 2.Strip 1½" off of outer sheathing. Remove exposed shield and drain wire and then tape. 3.Strip ¼" insulation from each conductor and connect to the terminal blocks. |
 |
Power Source Requirement |
An isolation source and overcurrent protective device rated 5A max must be installed in the power circuit. If a 5A-max isolation source and overcurrent protective device is not available, a Class 2 power source must be used. |

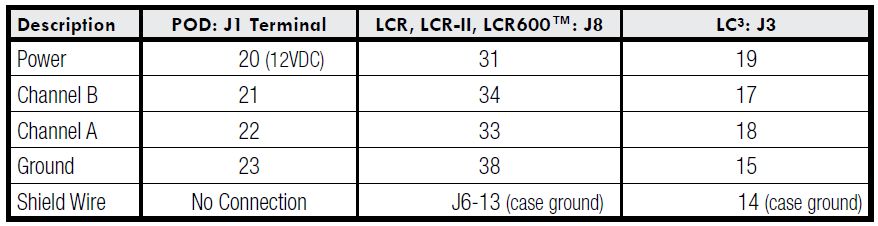

Dual Channel Quadrature Applications LECTROCOUNT® LCR®, LCR-II®, LC³, LCR 600
