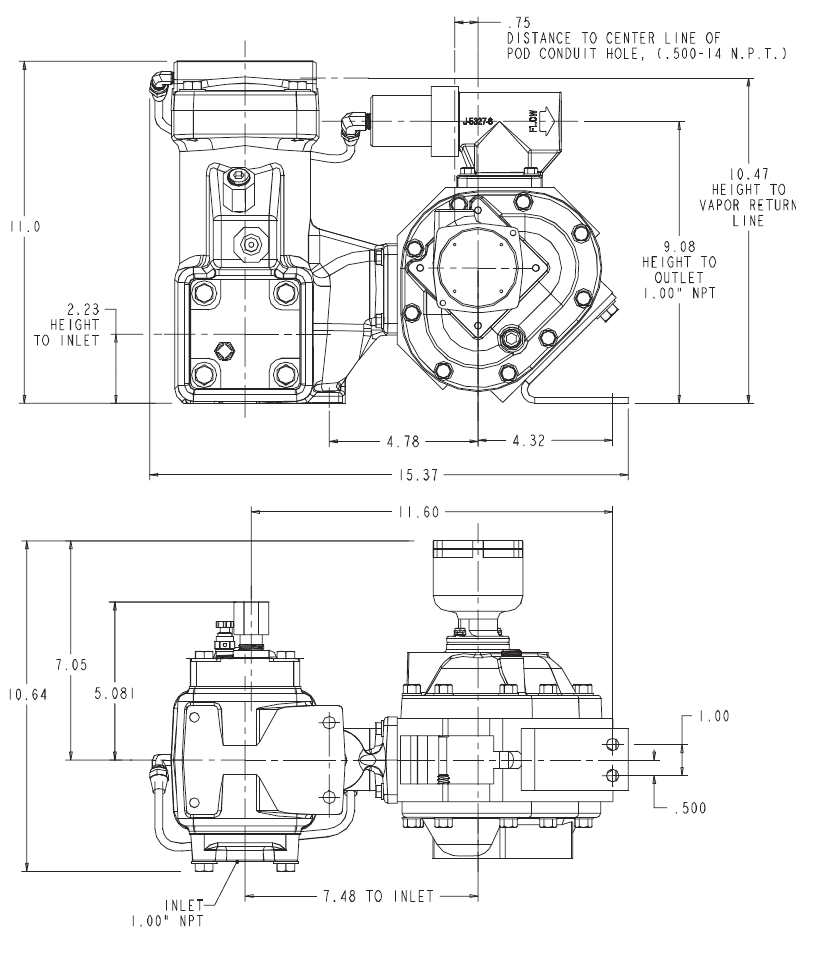

Latest Engineering Drawings

Always request up-to-date engineering approved dimensional drawings before starting any construction. Do not rely on catalog pictures or drawings, which are for reference only. After receiving the prints, check to see that all equipment ordered is shown and that any extra pressure taps, plugs, etc. are noted and their size specified.
