Meter System Components
METER SYSTEM

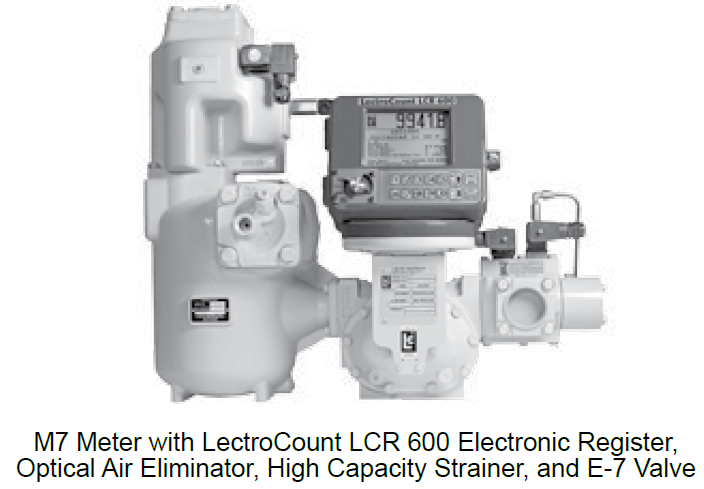

A Liquid Controls meter system not only accurately measures product, it also regulbates and purifies product flow in order to produce the optimal conditions for measurement. Optimal systems typically include an air/ vapor eliminator, strainer, meter, register, and control valve. The LectroCount LCR 600, a register, serves as the central controller of the meter system. Most components in the meter system are hard wired to the LCR 600 via data communication cables. See manual M100-10.
AIR / VAPOR ELIMINATORS

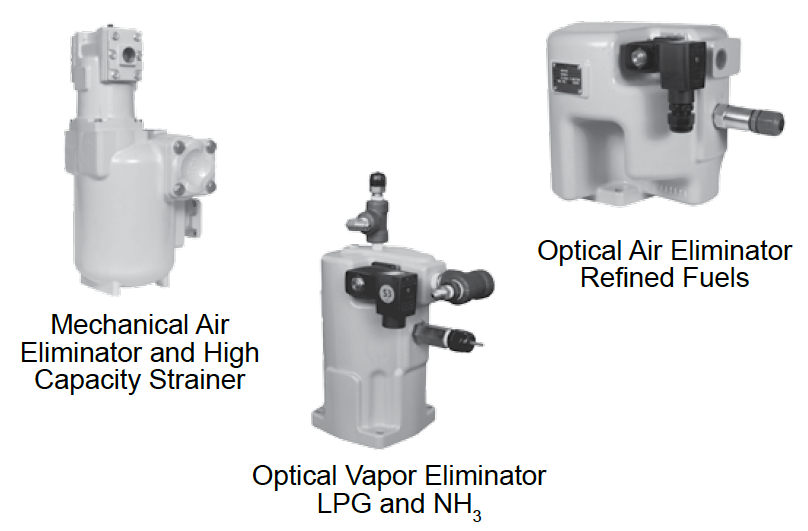

Air and vapor eliminators sense and remove air or vapor in the piping before it enters the metering system, ensuring that only liquid will pass through the meter for measurement. Mechanical air eliminators do not require a data connection to the LectroCount LCR 600 (in LPG applications, they are often plumbed to a 3-way solenoid which is wired to the LectroCount LCR 600). Optical air eliminators use an optical sensor to monitor liquid levels and a solenoid-actuated valve to turn the vapor vent on and off. The optical sensor and the solenoid valve are connected to the LectroCount LCR 600 by separate data cables. See manuals M300-20 and M300-21.
VALVES

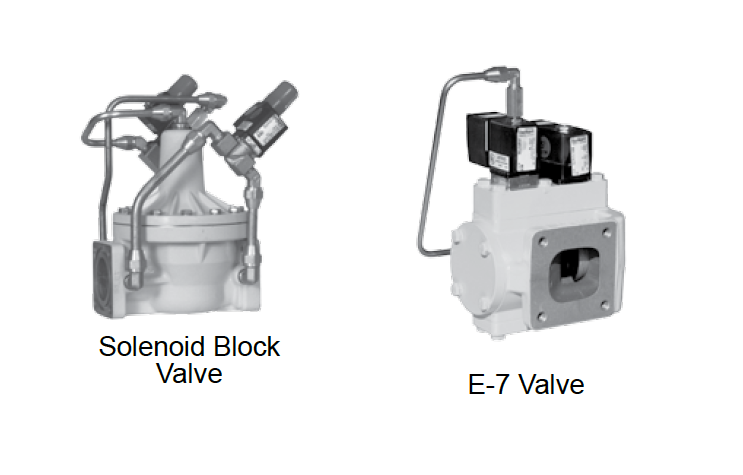

Valves control the flow through a metering system. They open the line to initiate custody transfers and close the line to stop custody transfers. Some valves can partially close, slowing the flow rate to a dwell flow on preset deliveries. By slowing the flow rate, valves can lessen the hydraulic shock incurred by the meter system upon shut off and provide accurate preset deliveries. Many valves use solenoid-operated valves that require a hard-wired data connection to the LectroCount LCR 600. See manuals M400-11 and M400-40.
ELECTRONIC TEMPERATURE VOLUME COMPENSATION (ETVC) KIT

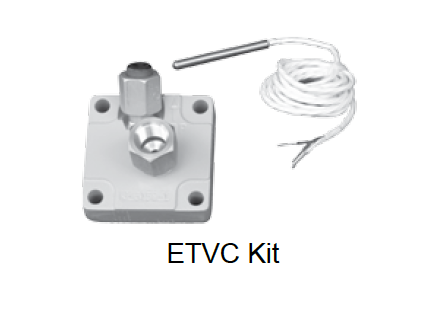

In order to perform temperature compensation equations, the LectroCount LCR 600 relies on a temperature probe inserted into the strainer housing. Installation directions for the ETVC kit are included in this manual.
XL LED REMOTE DISPLAY

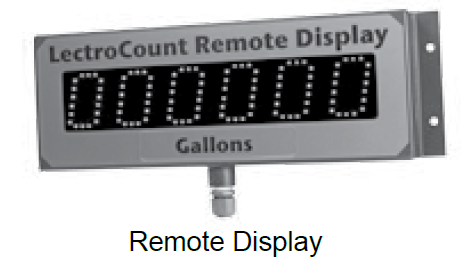

The XL LED Remote Display’s six 2¼” high digits, each consisting of 18 red LED lights, are discernible from up to 250 feet away. Hard wire data communication with the LectroCount LCR 600 is required. See manual EM300-55.
PRINTERS

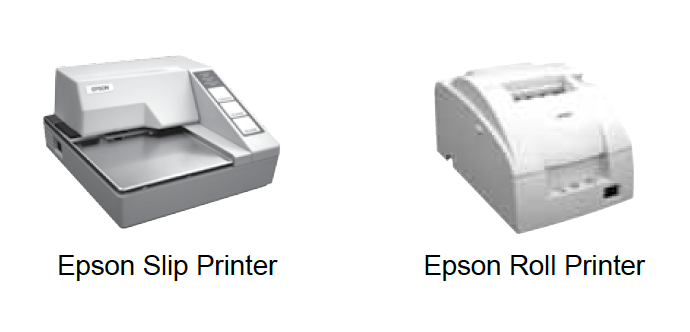

Printers print delivery tickets to provide a physical record of custody transfers. The Epson slip printer is considered the industry standard for many applications. Multilayered tickets are available to provide a physical record for both customers and business records. The Epson roll printer is ideal for recording multiple custody transfers over an extended time frame.
PULSE OUTPUT DEVICE

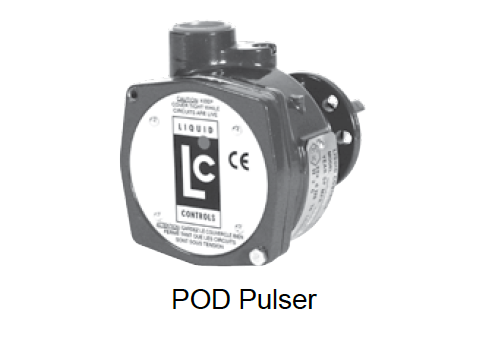

The Liquid Controls Pulse Output Device (POD pulser) converts the rotary motion of a positive displacement flowmeter into electronic pulses. POD pulsers can be used in place of an internal pulser. They are ideal for applications that require explosion proof components in which the LectroCount LCR 600 register is installed at a distance from the meter. The POD pulser requires hard-wired data communication with the LectroCount LCR 600. See manual EM300-11.
DIFFERENTIAL PRESSURE (ΔP) TRANSDUCER

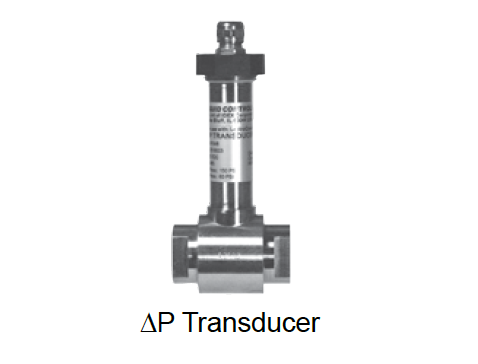

The differential pressure transducer, common in aviation applications, monitors the differential pressure (pressure drop) across a full flow fuel monitor/water coalescer. The highest differential pressure reached during the custody transfer will then be printed on the ticket. Using interlocks, the LectroCount LCR 600 can shut down a custody transfer if the differential pressure meets a preprogrammed differential pressure shutdown value. The ΔP Transducer requires hard wired data communication with the LectroCount LCR 600. See manual EM300-40.
DATA MANAGEMENT SYSTEMS

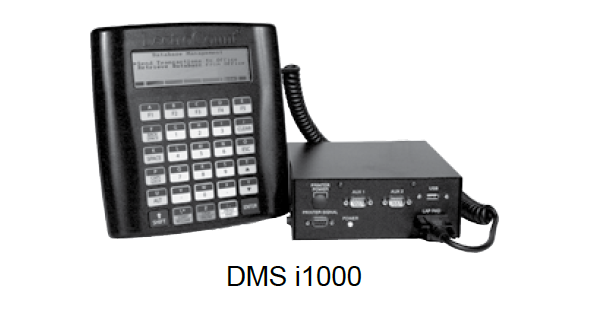

The DMS i1000 is an in-cab computer with a heavy duty lap pad interface. The DMS i1000 streamlines the flow of data between the LCR 600 and back office accounting software. The DMS i1000 must be hard wired to the LectroCount LCR 600. See manuals EM200-10 and EM200-11.
EZCOMMAND

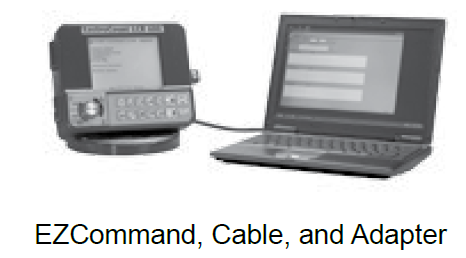

EZCommand is Windows®-based interface that saves and distributes LectroCount LCR 600 settings and updates. EZCommand can be loaded onto a laptop. Using a lap pad adapter (PN 81514) and a printer extension cable (PN 71815), the lap top can be quickly connected to upload settings and updates in the field. A flash cable (PN 81885), a data cable with a terminal block (J3) on one side and a 9-pin connector for your PC, can also make the connection but requires opening the LCR 600.
