Typical Adjustable Truck Seats
The diagrams below demonstrate how to attach the ground strap to typical truck seats.

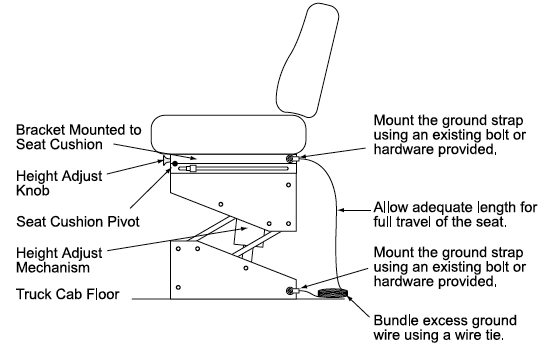

Air Cushion Seat - Adjustable for Height
(Bostrom 914 Series, National 2000 Series, or equivalent)

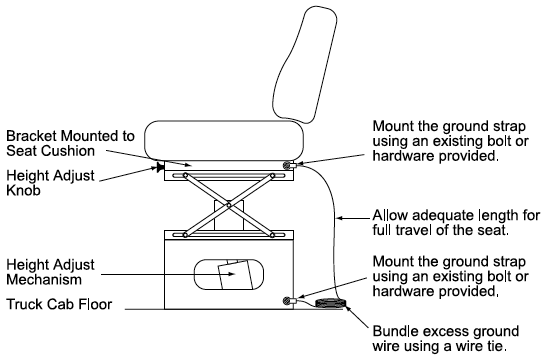

Air Cushion Seat - Adjustable for Height
(Dura-Form or equivalent)

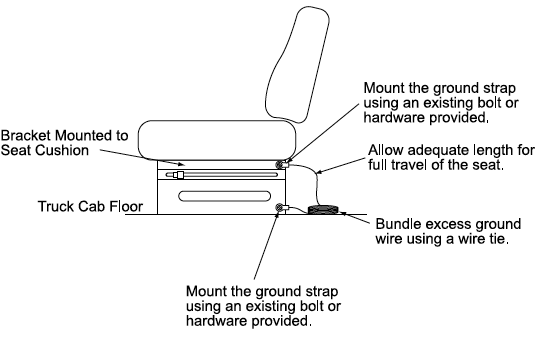

Bench Seats - Adjustable for Distance to the Steering Wheel
(Manufacturer Standard or equivalent)
